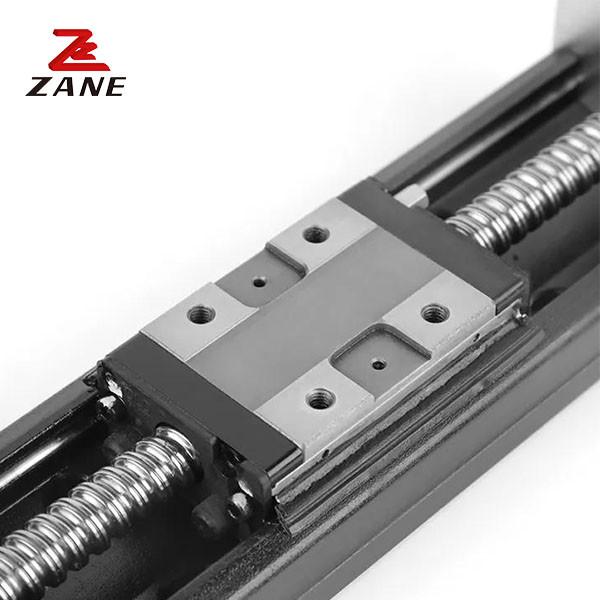

Linear Slide KK130 Module HIWIN Replacement Customizable Linear Ball Screw

Brand Name : ZANE

Model Number : KK130

Certification : CE，ISO

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100,000 pcs per month

Delivery Time : Three days at the soonest after order confirmation

Packaging Details : Standard export carton packing, wooden case, foam board inside for protection

Product name : Linear module

Weight (KG) : 10

Size : 340MM

Material : Bearing steel

Packaging : Wooden Box

Core Components : Motor

Structure : Linear Guide+Ball Screw+Motor

Performance : Smooth Linear Guide Rail

Contact Now

KK130 Linear Module Linear Slide HIWIN Replacement Customizable Linear Ball Screw

Product Description

1. High positioning accuracy:
Since the friction way of the linear module is rolling friction, not only the friction coefficient is reduced to 1/50 of the sliding guide, but the gap between the dynamic friction force and the static friction force is also small. Therefore, when the sliding table is running, there will be no slippage, and the positioning accuracy of μm level can be achieved.
2. Easy Assembly:
When assembling, as long as the mounting surface of the slide rail on the table is milled or ground, and the slide rail and slider are fixed on the machine table with a specific torque according to the recommended steps, the high precision during processing can be reproduced.

Linear Slide KK130 Module HIWIN Replacement Customizable Linear Ball Screw

Length of guide

L2(mm)

Full length

L1(mm)

 Maximum stroke(mm) G(mm) H(mm) n m Weight(kg)
A1Slide seat A2 Slide seat A1Slide seat A2Slide seat
980 1098 811 659 40 90 7 5 29.4 32.3
1180 1298 1011 859 65 90 8 6 34.3 37.2
1380 1498 1211 1059 90 90 9 7 39.2 42.1
1680 1798 1511 1359 90 40 11 9 46.5 49.4

Linear Slide KK130 Module HIWIN Replacement Customizable Linear Ball Screw
